Concept element. Very base class of the ConceptRTModel classes. More...

Detailed Description

Concept element. Very base class of the ConceptRTModel classes.

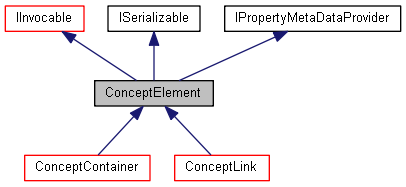

Inheritance diagram for ConceptElement:

Public Member Methods
const bool &	GetIsInvocable () const
	Controls if the objet should be shown in the invocation. More...

const bool &	GetIsInvocable ()
	Controls if the objet should be shown in the invocation. More...

void	SetIsInvocable (const bool &value)
	Controls if the objet should be shown in the invocation. More...

const bool &	GetIsSerialized () const
	Controls if the objet should be serialized. More...

const bool &	GetIsSerialized ()
	Controls if the objet should be serialized. More...

void	SetIsSerialized (const bool &value)
	Controls if the objet should be serialized. More...

	ConceptElement ()
	Default constructor. More...

	ConceptElement (const ConceptElement &right)
	Default constructor. More...

ConceptElement &	operator= (const ConceptElement &right)
	Assignment operator. More...

const StaticString< ConceptElementNameMaxLength > &	GetName () const
	Gets the name. More...

void	SetName (const PCChar8 name)
	Sets a name. More...

String	GetPath () const
	Gets the path of the ConceptElement. More...

ConceptContainer *	GetContainer () const
	Gets the container of the ConceptElement. More...

template<class ContainerType >
ContainerType *	GetContainerOfType () const
	Gets the container of a certain type the ConceptElement. More...

ConceptContainer *	GetRootContainer () const
	Gets the root container of the ConceptElement. More...

virtual const String	GetDisplayName () const
	Gets the display name. More...

virtual void	CopyDataFrom (const ConceptElement &source)
	Copies the data from another ConceptElement. More...

virtual void	CopyFrom (const ConceptElement &source)
	Copies itself from a given source. More...

virtual void	ReadFrom (IDataStore &dataStore, IMessageCollector *messages=NULL)=0
	Reads from. More...

virtual void	WriteTo (IDataStore &dataStore) const =0
	Writes to. More...

virtual void	Invoke (const DynamicInvocationRequest &request, DynamicInvocationResult &result)=0
	Invokes the object fields and methods. More...

virtual BaseConceptFactory &	GetFactory () const =0
	Gets the ConceptElement factory. More...

ConceptElement &	GetProvider () const
	Gets the provider of the ConceptElement if defined, throws a ConceptException otherwise. More...

template<class T >
T &	GetProvider () const
	Gets the provider of the ConceptElement if defined and of type T, throws a ConceptException otherwise. More...

bool	GetHasProvider () const
	Tests the existence of a provider. More...

template<class T >
bool	GetHasProvider () const
	Tests the existence of a provider of type T. More...

virtual ConceptElement *	Clone () const
	Makes a deep copy of this object. More...

virtual void	ResolveLinks ()
	Resolve links. More...

virtual void	RetrieveProvidedFactories (BaseConceptFactories &factories, const Predicate< BaseConceptFactory & > &filter)
	Retrieve provided factories. More...

void	RetrieveProvidedFactories (BaseConceptFactories &factories)
	Retrieve provided factories. More...

virtual void	RetrieveFactories (BaseConceptFactories &factories) const
	Retrieve factories. More...

Variant	GetPropertyMetaData (PCChar8 propertyName, PCChar8 metaDataName, const Variant &defaultValue=Variant::GetVariantNull()) const
	Returns a metadata string corresponding to a property and a metadata name. More...

Protected Member Functions
void	Initialize ()
	Initializes this object. More...

virtual BaseConceptFactory &	InternalGetFactory () const
	Gets the object factory. More...

virtual void	RetrieveElementProvidedFactories (BaseConceptFactories &factories, const Predicate< BaseConceptFactory & > &filter)
	RetrieveElementProvidedFactories. Used by the macro CONCEPT_PROVIDED_COMPONENT_BEGIN More...

Private fields
bool	IsInvocable
	Controls if the objet should be shown in the invocation. More...

bool	IsSerialized
	Controls if the objet should be serialized. More...

Constructor & Destructor Documentation

ConceptElement ( )

Default constructor.

ConceptElement ( const ConceptElement & right )

Default constructor.

Parameters

right The right.

Methods Documentation

virtual ConceptElement* Clone ( ) const

virtual

Makes a deep copy of this object.

Returns: null if it fails, else a copy of this object.

Warning: Non-Deterministic: The new element is created on the heap. Determinism when using ConceptRT library can be ensure by using Context Time Critical mechanisms.

virtual void CopyDataFrom ( const ConceptElement & source )

virtual

Copies the data from another ConceptElement.

Parameters

source Source of the data.

RT Exceptions:

RT_ERROR_STACK_LIMITATION

RT_ERROR_COPY_ELEMENT

virtual void CopyFrom ( const ConceptElement & source )

virtual

Copies itself from a given source.

Parameters

source Source of the data.

RT Exceptions:

RT_ERROR_STACK_LIMITATION

RT_ERROR_COPY_ELEMENT

ConceptContainer* GetContainer ( ) const

Gets the container of the ConceptElement.

Returns: null if it fails, else the container.

ContainerType * GetContainerOfType ( ) const

Gets the container of a certain type the ConceptElement.

Template Parameters

ContainerType The type of the container.

Returns: null if it fails, else the container.

virtual const String GetDisplayName ( ) const

virtual

Gets the display name.

Returns: The display name.

virtual BaseConceptFactory& GetFactory ( ) const

pure virtual

Gets the ConceptElement factory.

Returns: The factory.

bool GetHasProvider ( ) const

Tests the existence of a provider.

Returns: Returns true if the ConceptElement has a provider, or false otherwise.

bool GetHasProvider ( ) const

Tests the existence of a provider of type T.

Returns: Returns true if the ConceptElement has a provider of type T, or false otherwise.

const bool & GetIsInvocable ( ) const

inline

Controls if the objet should be shown in the invocation.

It enables us to hide a branch of the objet model to the invocation mechanisms.

Returns: the property value

See also: Field: IsInvocable; Setter: SetIsInvocable()

const bool & GetIsInvocable ( )

inline

Controls if the objet should be shown in the invocation.

It enables us to hide a branch of the objet model to the invocation mechanisms.

Returns: the property value

See also: Field: IsInvocable; Setter: SetIsInvocable()

const bool & GetIsSerialized ( ) const

inline

Controls if the objet should be serialized.

It enables us to hide a branch of the objet model to the serialization mechanisms.

Returns: the property value

See also: Field: IsSerialized; Setter: SetIsSerialized()

const bool & GetIsSerialized ( )

inline

Controls if the objet should be serialized.

It enables us to hide a branch of the objet model to the serialization mechanisms.

Returns: the property value

See also: Field: IsSerialized; Setter: SetIsSerialized()

const StaticString<ConceptElementNameMaxLength>& GetName ( ) const

Gets the name.

Returns: The name.

String GetPath ( ) const

Gets the path of the ConceptElement.

Returns: The path.

Variant GetPropertyMetaData	(	PCChar8	propertyName,
		PCChar8	metaDataName,
		const Variant &	defaultValue = `Variant::GetVariantNull()`
	)		const

virtual

Returns a metadata string corresponding to a property and a metadata name.

Parameters

propertyName	[in] The name of the property to which the metadata is looked for.
metaDataName	[in] The name of the metadata entry to which the metadata is looked for.
defaultValue	[in] The value returned if no metadata is found.

Returns: the value under a Variant type.

Implements IPropertyMetaDataProvider.

ConceptElement& GetProvider ( ) const

Gets the provider of the ConceptElement if defined, throws a ConceptException otherwise.

Returns: The provider.

RT Exceptions:: RT_ERROR_NOT_PROVIDED_OBJECT

T & GetProvider ( ) const

Gets the provider of the ConceptElement if defined and of type T, throws a ConceptException otherwise.

Template Parameters

T	The provider expected type.

Returns: The provider.

RT Exceptions:

RT_ERROR_NOT_PROVIDED_OBJECT

RT_ERROR_PROVIDER_NOT_EXPECTED_TYPE

ConceptContainer* GetRootContainer ( ) const

Gets the root container of the ConceptElement.

Returns: null if it fails, else the root container.

void Initialize ( )

protected

Initializes this object.

virtual BaseConceptFactory& InternalGetFactory ( ) const

protectedvirtual

Gets the object factory.

Returns: The factoriy.

RT Exceptions:: RT_ERROR_INTERNAL_FACTORY_NOT_DEFINED

virtual void Invoke	(	const DynamicInvocationRequest &	request,
		DynamicInvocationResult &	result
	)

pure virtual

Invokes the object fields and methods.

Parameters

request	The request.
result	[in,out] The result.

Dynamic Invocation on IInvocable objects enables us to have remote access on published fields and methods.

Implements IInvocable.

Implemented in AcquisitionSystemRT< AcquitisionBufferSize, LoggerBufferSize, MemoryRootBufferSize >, AcquisitionSystem, AcquisitionChannel, ConceptMultipleLink< ElementType >, ConceptContainer, ConceptLink, BaseConceptMultipleLink, and IoTechnology.

ConceptElement& operator= ( const ConceptElement & right )

Assignment operator.

Parameters

right The right.

Returns: A shallow copy of this object.

virtual void ReadFrom	(	IDataStore &	dataStore,
		IMessageCollector *	messages = `NULL`
	)

pure virtual

Reads from.

Parameters

dataStore	[in,out] The dataStore.
messages	[in,out] (optional) The messageCollector to collect warning or error messages. Default = NULL.

Implements ISerializable.

Implemented in ConceptDynamicComponent< ElementType >, ConceptLink, BaseConceptMultipleLink, ConceptComponent, BaseConceptDynamicList, and BaseConceptStaticList.

virtual void ResolveLinks ( )

virtual

Resolve links.

Reimplemented in IoMappingSimulationItemSync, ConceptMultipleLink< ElementType >, ConceptSingleLink< ElementType >, ConceptContainer, BaseConceptSingleLink, and IoMappingChannelItemSync.

virtual void RetrieveElementProvidedFactories	(	BaseConceptFactories &	factories,
		const Predicate< BaseConceptFactory & > &	filter
	)

protectedvirtual

RetrieveElementProvidedFactories. Used by the macro CONCEPT_PROVIDED_COMPONENT_BEGIN

Parameters

factories	The factory list to populate.
filter	filter that makes the selection of the corresponding factories through Predicate pattern possible.

virtual void RetrieveFactories ( BaseConceptFactories & factories ) const

virtual

Retrieve factories.

Parameters

factories [in, out] factories list to populate.

Reimplemented in ConceptContainer.

virtual void RetrieveProvidedFactories	(	BaseConceptFactories &	factories,
		const Predicate< BaseConceptFactory & > &	filter
	)

virtual

Retrieve provided factories.

Parameters

factories	[in, out] factories list
filter	filter that makes the selection of the corresponding factories through Predicate pattern possible.

Reimplemented in ConceptContainer.

void RetrieveProvidedFactories ( BaseConceptFactories & factories )

Retrieve provided factories.

Parameters

factories [in, out] factories list

void SetIsInvocable ( const bool & value )

inline

Controls if the objet should be shown in the invocation.

It enables us to hide a branch of the objet model to the invocation mechanisms.

Parameters

[in] value The new parameter value.

Returns: the property value

See also: Field: IsInvocable; Getter: GetIsInvocable()

void SetIsSerialized ( const bool & value )

inline

Controls if the objet should be serialized.

It enables us to hide a branch of the objet model to the serialization mechanisms.

Parameters

[in] value The new parameter value.

Returns: the property value

See also: Field: IsSerialized; Getter: GetIsSerialized()

void SetName ( const PCChar8 name )

Sets a name.

Parameters

name The name.

RT Exceptions:: RT_ERROR_INVALID_NAME

virtual void WriteTo ( IDataStore & dataStore ) const

pure virtual

Writes to.

Parameters

dataStore [in,out] The dataStore.

Implements ISerializable.

Implemented in ConceptDynamicComponent< ElementType >, ConceptLink, BaseConceptMultipleLink, ConceptComponent, BaseConceptDynamicList, and BaseConceptStaticList.

Fields Documentation

bool IsInvocable

private

Controls if the objet should be shown in the invocation.

It enables us to hide a branch of the objet model to the invocation mechanisms.

See also: Getter: GetIsInvocable(); Setter: SetIsInvocable()

bool IsSerialized

private

Controls if the objet should be serialized.

It enables us to hide a branch of the objet model to the serialization mechanisms.

See also: Getter: GetIsSerialized(); Setter: SetIsSerialized()

Detailed Description

Public Member Methods

Protected Member Functions

Private fields

Constructor & Destructor Documentation

Methods Documentation

Fields Documentation
